轻触开关
![](/d/file/p/2023/08-29/629b80c85f8a0eb10ad6f1edde2887fb.png)
![](/d/file/p/2023/08-29/629b80c85f8a0eb10ad6f1edde2887fb.png)
![](/d/file/p/2023/08-29/629b80c85f8a0eb10ad6f1edde2887fb.png)

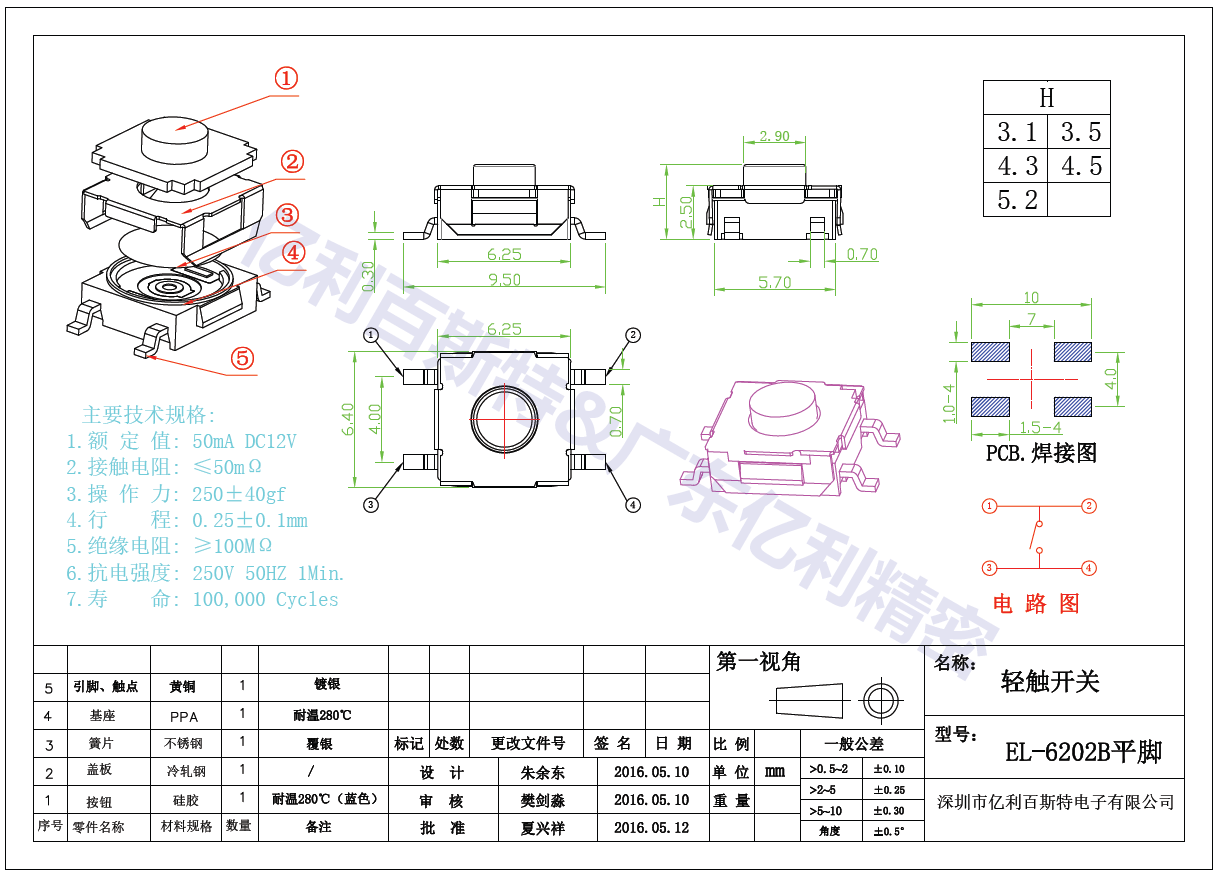

规格:6.2*6.2*2.5/3.1/3.4/3.7/4.3/4.5/5.0
力度:100gf/180gf/250gf/350gf
寿命:300万次
1.动作类型(Type Of Actuation):轻触返回 (Tactile Feedback)
2.最大额定值(Maximum Rating):DC12v ,50mA
3.接触电阻(Contact Resistance):≤50MΩ (50MΩMax)
4.绝缘电阻(Insulation Resistance):>100MΩ (100MΩMin)
5.使用温度(Operating Temperature):-40-70℃
